New ergonomic cockpit & roof design studies
Stylisme & naval design

Trimaran F40 refit for Rhum race 2022

2019

F40 trimaran preparation & adaptation for French Rhum race in 2022.

Cockpit studies for an ergonomic / usability manoeuvers area & a good roof protection shape.

Searches, studies, pictures & proposals. Pierre J. Kubis designs july / dec 2019

F40-2
F40-3

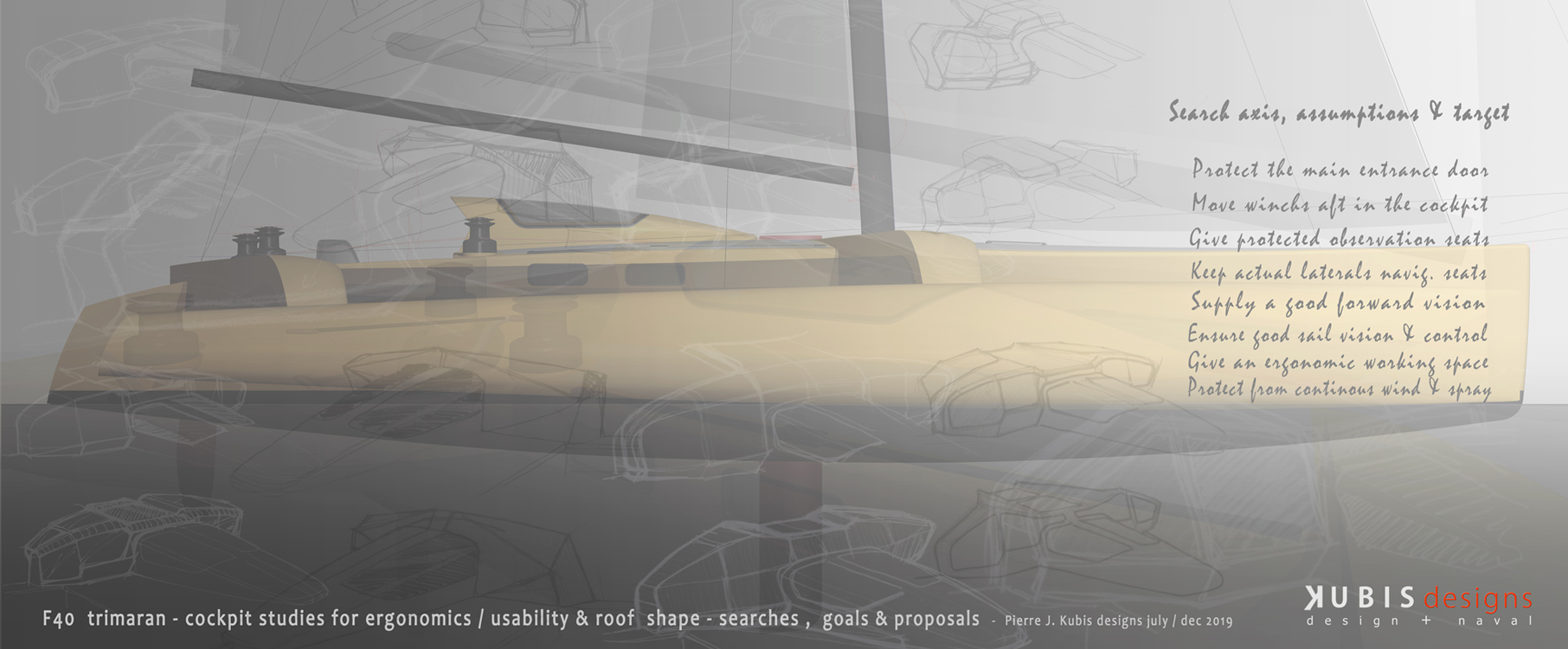

Searches axis, assumptions & targets : Protect the main entrance door for a dry acces

F40-4

Integrate protected observation seats - Move winchs aft in the cockpit for efficiency

F40-5

Keep the actuals laterals navigation & sailing seats, for observation & strategy

F40-6

Supply a good forward vision & ensure good sail vision & control

F40-7

Give an ergonomic working space & protection from continous wind & spray

F40-8
